304 Stainless Steel Flap Barrier Turnstile with RS485 Communication IP54 Protection and Customizable Arm Length

Merknaam:	AnKuai
Modelnummer:	AKT322
MOQ:	1
Prijs:	$120-150

Detailinformatie

Productomschrijving

Detailinformatie

Plaats van herkomst:

Guangdong, China

Toegangscontrole:

ESD-systeem, gezichtsherkenning, IC-kaart, vingerafdruk, QR-code, RFID-kaart

Barrièresnelheid:

0,2 s, 0,4 s, 1 s, 0,6 s, 0,5 s, 0,8 s, 1,2 s, 2 s, 1,5 s

Communicatie-interface:

RS485, RS-232

Werkrichting:

1-manier

barrièremotor:

Borstelloze motor

Materiaal:

304 rangroestvrij staal

Tourniquet-functies:

Telfunctie, voorkomen van botsingen, anti-pinch, anti-tailgating

Voeding:

220VAC 50HZ/110VAC 60HZ

Maat:

1050 (H) *168 (D) mm

Armlengte:

500900mm (facultatief)

Slaagpercentage:

30-40 personen per minuut

MCBF:

rond 4 miljoen keer

Ingangsspanning:

12V droog contact

Gewicht:

40 kg

Stroomverbruik:

Markeren:

RS485 Communication Flap Barrier Turnstile

IP54 Protection Swing Barrier Turnstile

Customizable Arm Length Access Control Turnstile

Productomschrijving

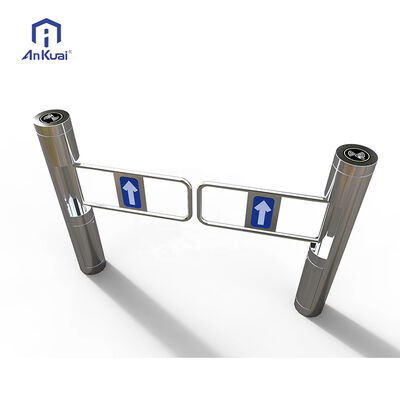

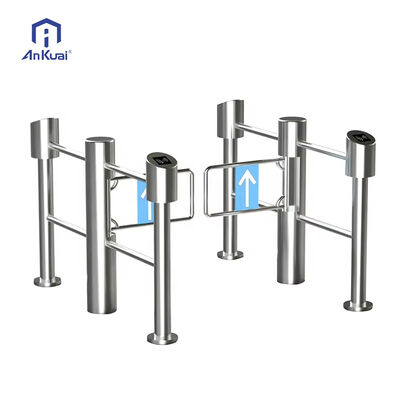

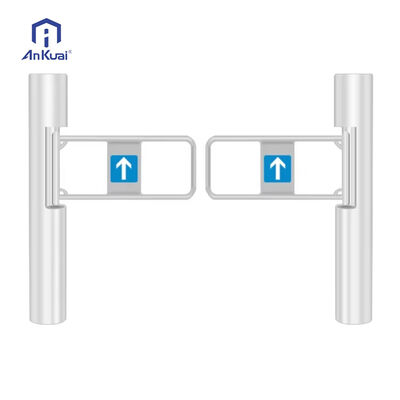

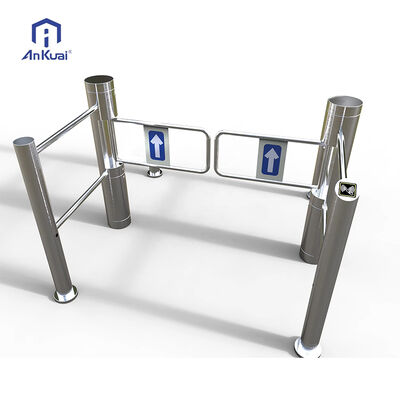

Card Swipe Airport DC Brushless Motor Anti-pinch Pedestrian Acrylic Swing Barrier Slim Fastspeed Turnstile Gate

304 Stainless Steel Security Access Control Entrance Gate Barrier

This manual swing turnstile gate is designed for pedestrian traffic management at building entrances and pathways.

Operation: Manual push of swing arm allows easy passage, with automatic return to closed position
Passage direction: Configurable for one-way or two-way access
Minimum order quantity: 1 unit
Swing arm length: Standard 900mm (custom lengths available)

Feature Highlights

Constructed from 304 stainless steel for superior durability and corrosion resistance. Features customizable arm length (600-900mm) and supports one-way or two-way passage configuration. Operates in temperatures from -25℃ to +60℃ with a transit capacity of 30-45 persons per minute. Ideal for stations, offices, and hotels. CE and RoHS certified for EU market compliance.

Technical Specifications

Specification	Details
Model Number	AKT322
Type	Swing barrier gate
Material	304 grade stainless steel
Dimensions	1050mm(H) * 168mm(D)
Weight	40kg
Arm Length	500-900mm (customizable)
Working Voltage	AC220V (±10%), 50Hz (±10%)
Passage Rate	30-40 persons per minute
Protection Grade	IP54
Communication Interface	RS485 standard port
Operational Lifetime	Approximately 4 million cycles
Operating Temperature	-25ºC to +70ºC
Power Consumption	32W
Input	12V dry contact
Humidity Tolerance	≤90%
